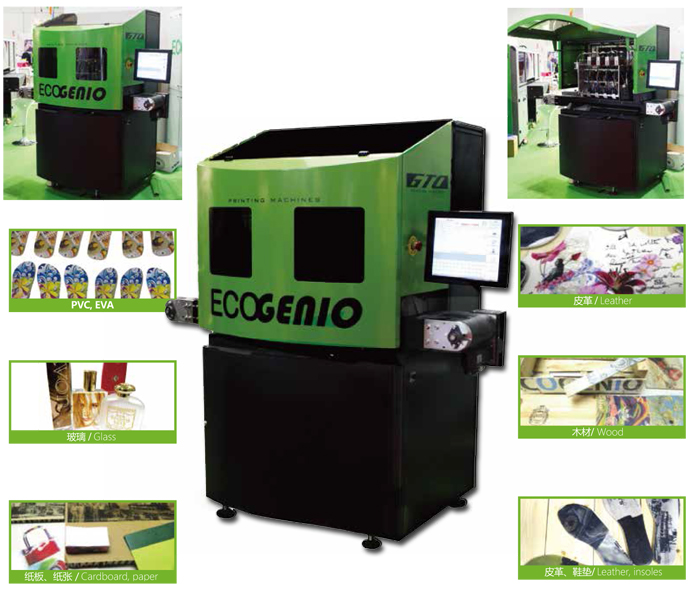

Ecogenio高速UV打印机

Ecogenio引入一种新的印刷理念，可在各种不同材料制成的表面平整及凹凸不平的物件上进行高速和高性能的喷绘。一次成色系统集中了数码打印和传统丝网印刷技术的所有优点。即使购买多年后所有Ecogenio机型都能扩展至多种颜色或更大打印尺寸，且能设置为UV、环保溶剂、LATEX、或水性印刷。打印设置可更改（根据机器配置），自360 dpi起至1200dpi，且生产速度每分钟 1-45米。

Ecogenio introduces a new concept for the printing of flat and tridimensional objects of all kind of materialswith high speed
and quality performance . The single –pass system is placed alongside the traditional pad and screen printing machines with all the related knownf the digital print. All the Ecogenio models can always be expanded to more colors or bigger printing size even after years from its purchase and can be set up for the UV, ECOSOLVENT, LATEX, or WATERBASED printing.The printing definition is changeable (according to the machine configuration) from 360 up to 1200 dpi and the production speed is from 1
to 45 meter/min.

技术详情/ Technical details
印刷技术 Printing technology	单通道，打印头固定在运行的皮带上 Single-pass, fixed printhead on running belt
颜色 Colors	From 1 to 8
墨滴尺寸（pl） Drop dimension (pl)	6-42pl ~5-18 pl（因所用的打印头而异） From 6 to 42 - from 5 to 18 pl (depends on print head used)
打印头 Print head	XAAR 1001 (墨滴可变) KIOCERA Kj4a/b / XAAR 1001 (variable drop) KIOCERA Kj4a/b
打印单张高度 Printing piece height	0.1 - 200 mm / from 0. 1 to 200 mm
打印区域 Printing area	74 - 210 mm / from 74 to 210 mm
机器软件 Machine software	专用集成pc，触摸屏显示器 Dedicated, integrated pc, touch screen monitor
打印长度 Printing length	每分钟1-45米 from 1 to 45 linear meters per minute
打印软件 Printing software	ONYX Ecogenio
墨水系统 Ink System	水性、LATEX、UV、环保溶剂 Water-based, latex, UV, ecosolvent
分辨率 Resolution	360 - 600 - 720 -1200 DPI.
技术数据/ Technical data
连接 Connectivity	100/1000兆以太网/Ethernet 100/1000
功率 Power	32 A 400v/50 Hz
消耗 Consumption	4 Kw
使用条件 Conditions of use	温度 20°- 28°C, 湿度 30/65% 20°-28°C temperature, 30/65% humidity
外观尺寸 / 重量 Dimension / Weight	198cm x 110cm x250cm / 700Kg
可打印基底/ Printable substrates
- 软木、木质及其各种形式的所有衍生物。/ cork, wood and all its derivates in various forms. - 塑料、PVC、PET、EVA、扩展聚酯薄膜、橡胶 / plastic, PVC,PET, EVA, expanded polyester, rubber. - 棉、针织物、Juta、斜纹呢/ Cotton, jersey, juta, gabardine. - 真皮和合成革、绒面革/ Real and synthetic leather, suede. - 任意纸张和纸板/ Paper and cardboard of any kind - 天然纺织品、合成纺织品及无纺布/Natural textiles, synthetic textiles - 鞋垫、凉鞋和人字拖/ Shoe insoles, sandals and flip flops - 玻璃、陶瓷/ Glass, ceramic.
