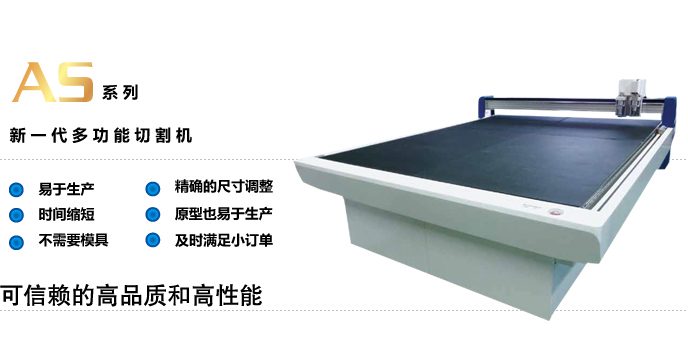

日本原装进口多功能切割机





型号 Model AS1212F AS2016F AS2616F AS2916F AS3020F AS3222F AS5022F
工作面积
Processing		 1200x1200 2000x1600 2600x1600 2900x1600 3000x2000 3200x2200 5000x2200
最大速度
Max. speed		 1000mm/s 1000mm/s 1000mm/s 1000mm/s 1000mm/s 1000mm/s 1000mm/s
最大加速度
Max.
acceleration		 0.8G 0.8G 0.8G 0.8G 0.8G 0.8G 0.8G
外形尺寸
Dimensions		 1650x1650 2560x2036 3160x2036 3460x2036 3560x2410 3790x2658 6064x2668
重量(kg)
Weight		 200 400 450 650 720 850 1100
定位精度
Positional
accuracy		 ±0.2mm ±0.2mm ±0.2mm ±0.2mm ±0.2mm ±0.2mm ±0.2mm
重复精度
Repeat
accuracy		 ±0.05mm ±0.05mm ±0.05mm ±0.05mm ±0.05mm ±0.05mm ±0.1mm




30mm刀片
30mm blade		 可切割宽度达35mm的材料
Capable of cutting the material in width up
to 35mm		   强力钻头功率
Power router
head		 1200W
60mm刀片
60mm blade		 可切割宽度达65mm的材料
Capable of cutting the material in width up
to 65mm		 笔头
Pen head		 1个
One piece
V切割刀
V cut		 可切割宽度达15mm的三层瓦楞纸
Capable of cutting three layered corrugated card box in width up to 15mm		 激光指示器
Laser pointer		 定位确认，2D原点设置
Position recognition、Setup of 2D original
point
塑料瓦楞纸板框架边框
Frame border of plastic corrugat
-ed cardboard		 5mm宽塑料瓦楞纸板
5mm wide plastic corrugated cardboard		 切割线确认
Recognition of
cut line		 确认打印切割线的图像
Recognize image of printed cut line
标准钻头
Standard router head		 350W 裁切标记识别
Trim mark
recognition		 CCD 摄镜头
CCD camera









标准超硬切割刀15mm
可切割15mm厚度的材料
STANDARD ULTRA HARD CUTTER
BLADE 15mm
can cut up to 15mm material		   标准超硬切割刀15mm（宽头）
速度比标准超硬切割刀更快
STANDARD ULTRA HARD CUTTER
BLADE 15mm (wide head)
can speed up rather than standard
ultra hard cutter

BC刀片
比标准刀片更能切割精细工
BC BLADE
can do more detailed work
rather than standard blade

 BCA刀片15mm（宽头）
速度比BC刀片更快
BCA BLADE 15mm (wide head)
can speed up rather than BC Blade
BCT刀片15mm（尖头）
比BC刀片更能切割精细工艺
BCT BLADE 15mm (sharp h
can do more detailed work
rather than BC blade

60mm波浪刀
适合加工达65mm厚度的
以及分层的瓦楞纸板
60mm WAVE BLADE
suitable for processing of
to 65mm foam and layerd
corrugated cardboard

60mm直刀
适合加工达65mm厚度的泡沫
60mm STRAIGHT BLAD
suitable for processing of up
to 65mm foam

 60mm AL刀片
适合加工达65mm厚度的精细工艺
60mm AL BLADE
suitable for processing of
detailed work of up to 65mm
30mm波浪刀
适合加工达30mm厚度的
硬泡沫以及分层的瓦楞纸板
30mm WAVE BLADE
suitable for processing of up
to 30mm hard foam and
layerd corrugated cardboad

30mm直刀
适合加工达30mm厚度的泡沫
30mm STRAIGHT BLAD
suitable for processing of
up to 30mm foam
60mm AL刀片
适合加工达40mm厚度泡沫的
精细工艺
60mm AL BLADE
suitable for processing of
detailed work of up to 40mm

40mm刀片（AMA直刀）
适合40mm厚度软泡沫的弧
或圆型垂直之前部分
40mm BLADE (STRAIGHT
AMA BLADE)
suitable for prior to verticality
of arc or circle up to 40mm
soft foam
V型切割刀片
适合15mm厚度瓦楞纸板的
V型切割
V CUT BLADE
usable for V Cut of up to
15mm corrugated cardboard

药物刀
适合推切纸板
DRUG NIFE
Suitable for push cut of
cardboard
